Foundation Reinforcement for Illinois Investment Property

InvisiBeam® System Adds Structural Value to Mixed-Material Wall

The Challenge

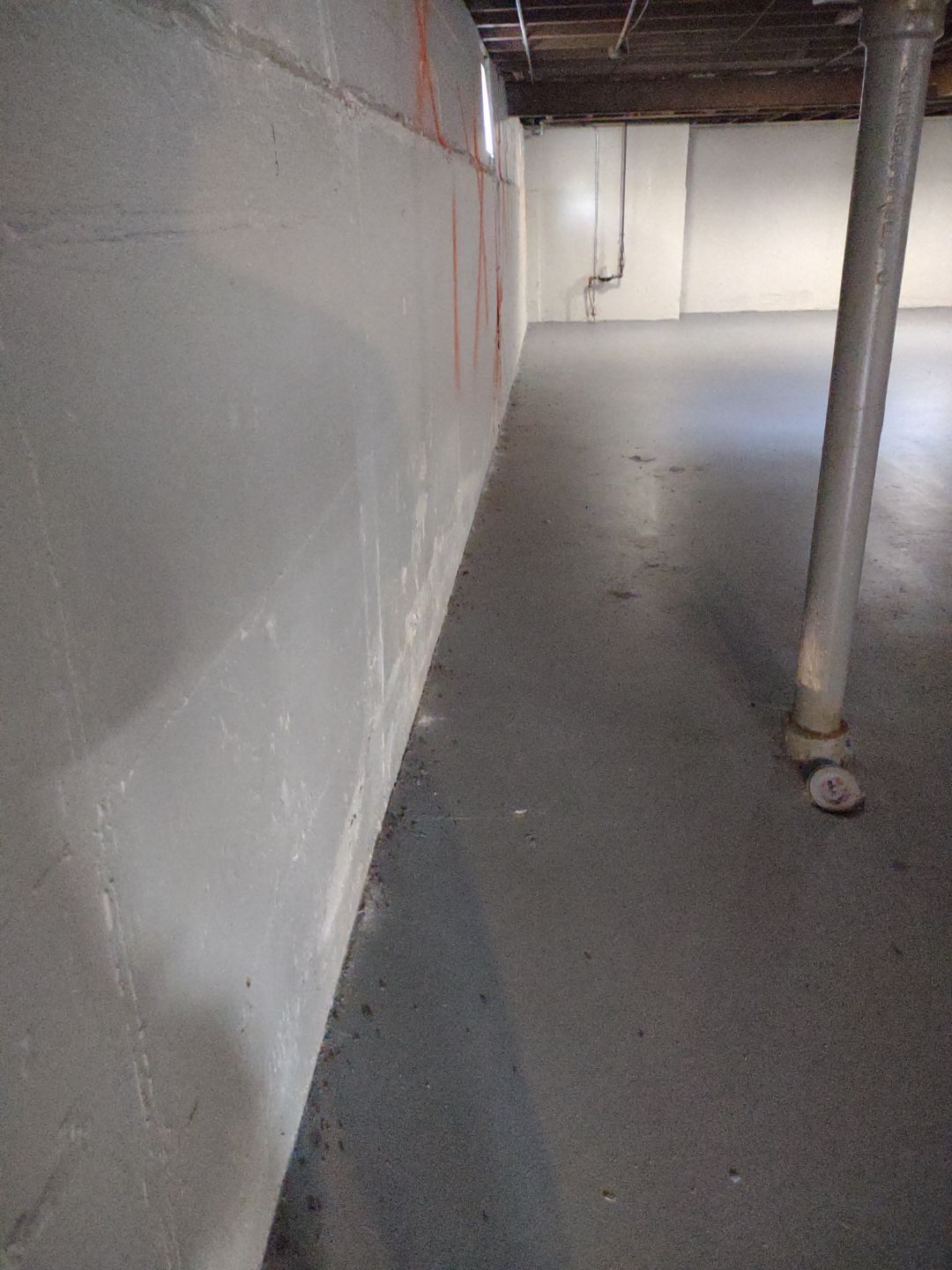

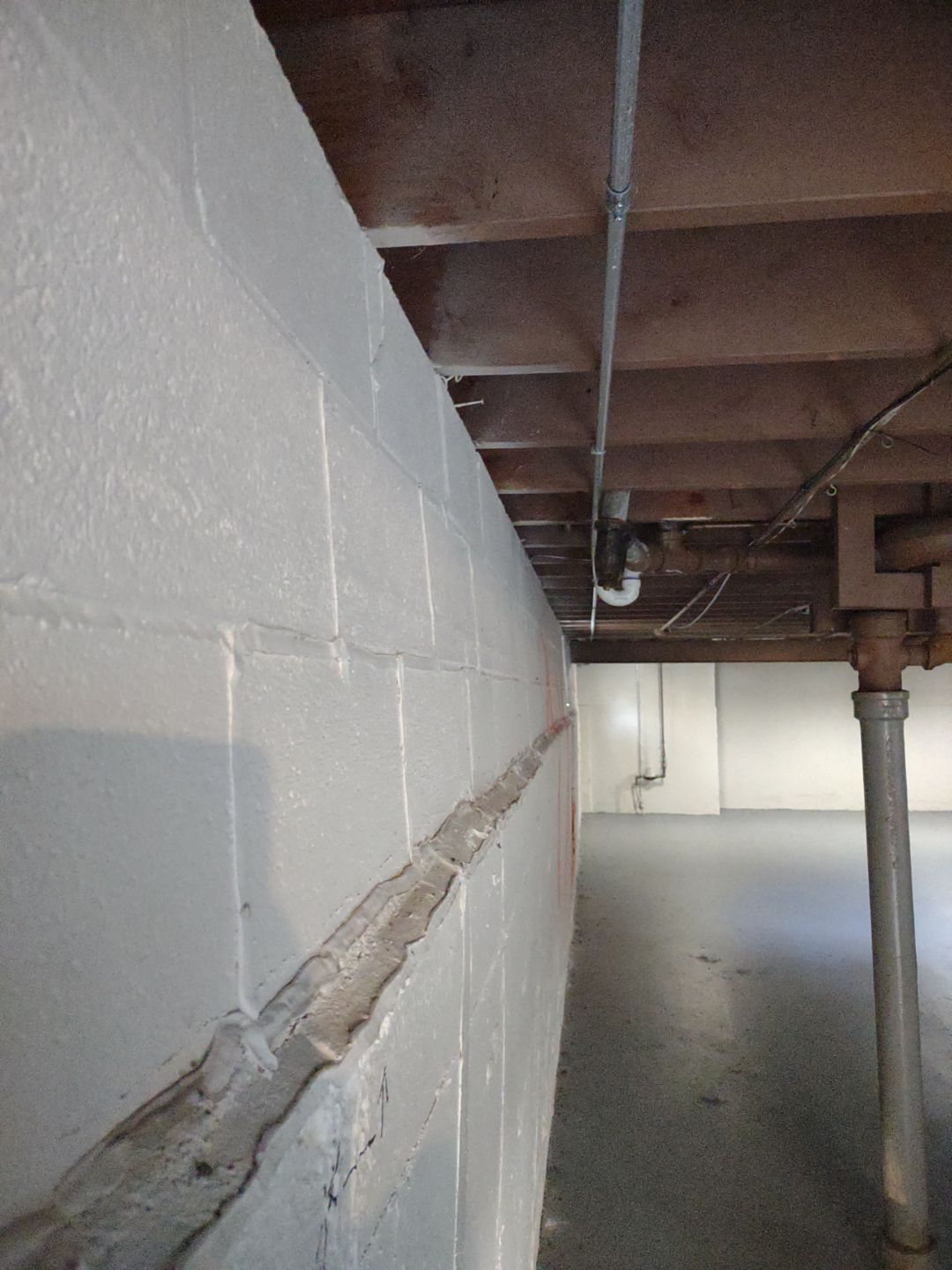

An Illinois investment property was showing signs of wall deflection—specifically at the transition between a poured concrete foundation and cinder block wall. This type of material shift often creates a structural weak point, and in this case, a small ledge or gap had formed where the two surfaces met. Left uncorrected, this deflection could threaten the long-term stability of the wall and reduce the property's market value.

The Solution

The Real Seal, a Fortress certified contractor, was called in to reinforce the wall and restore its structural integrity. Their solution included:

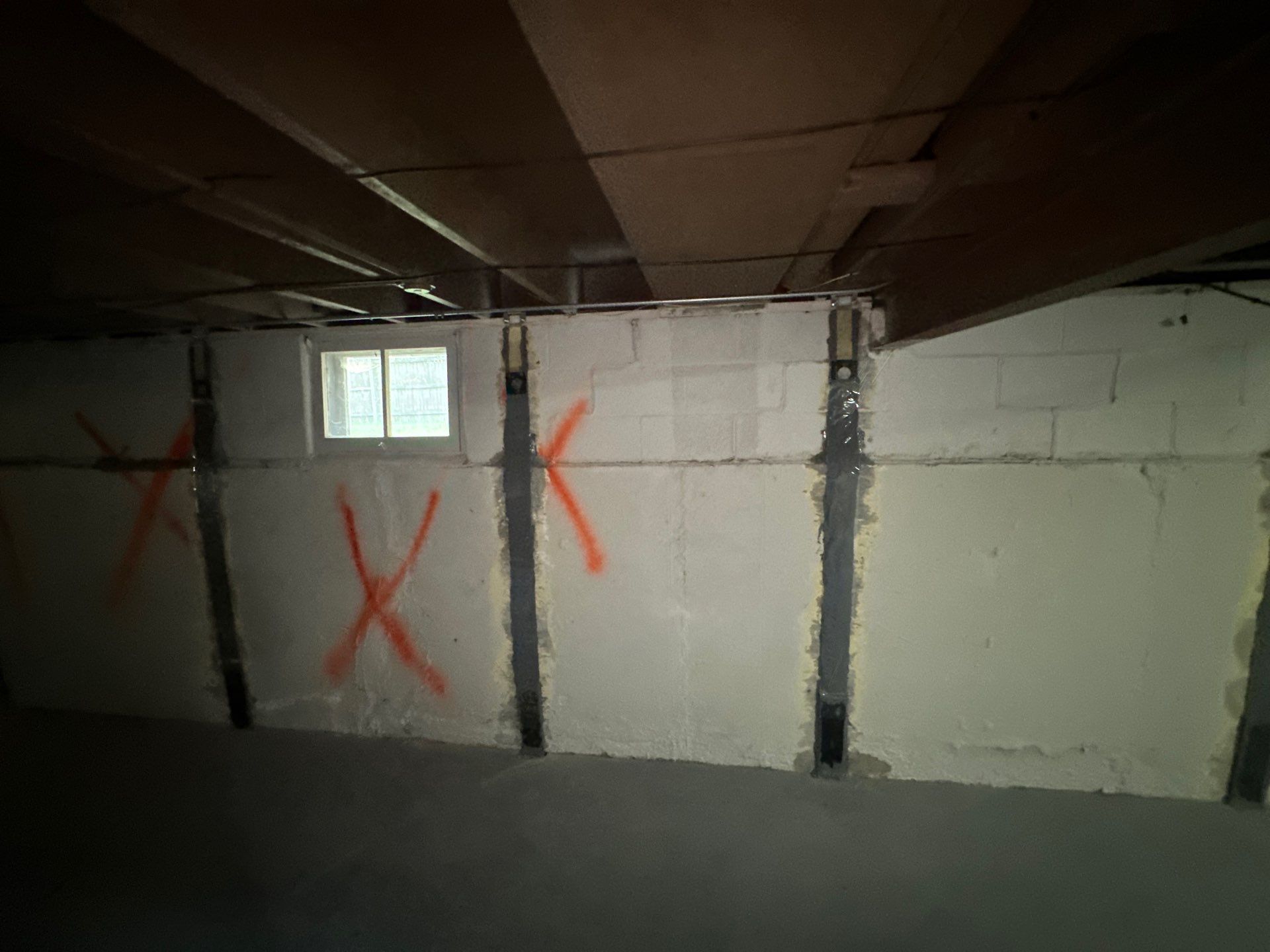

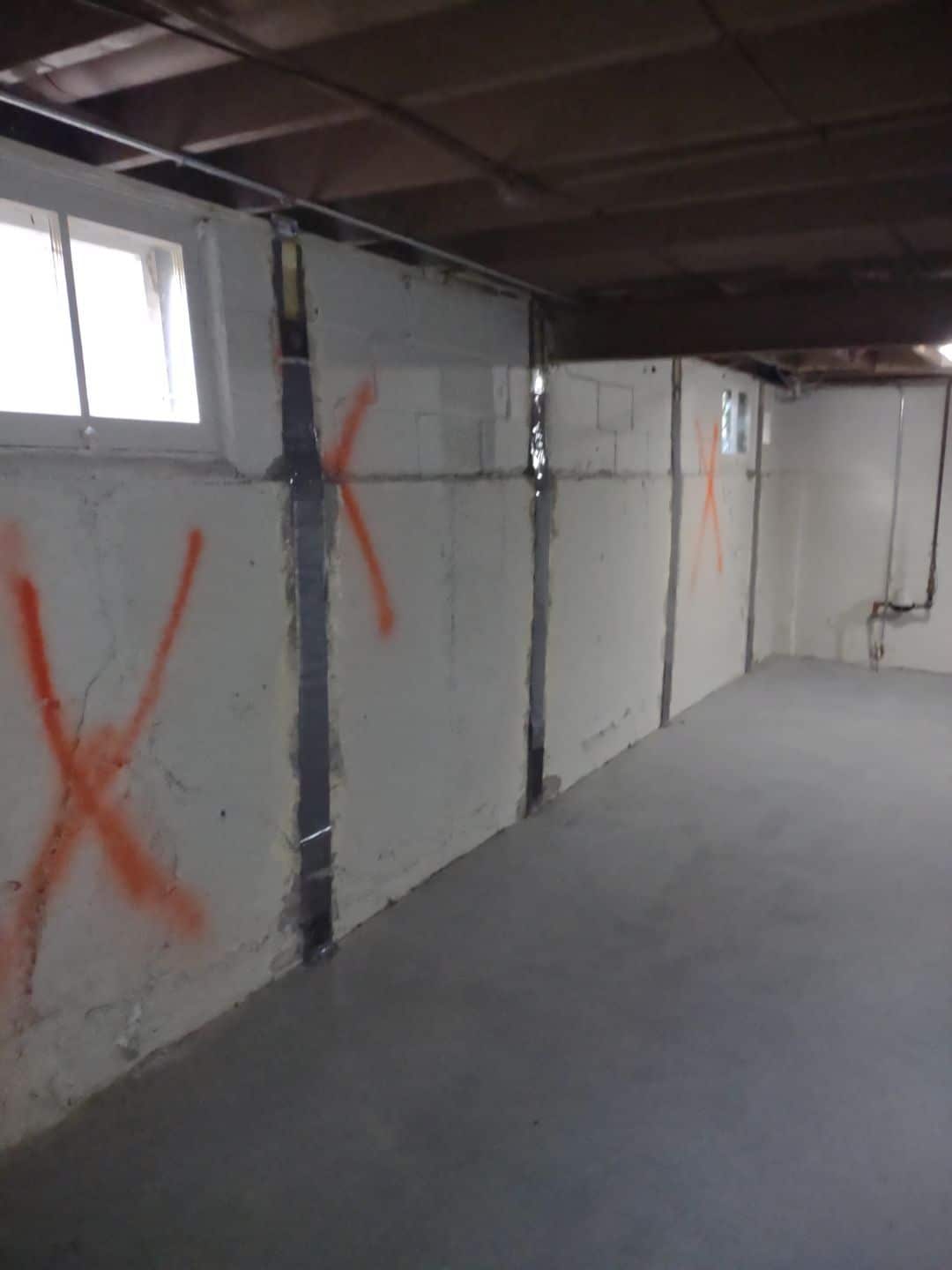

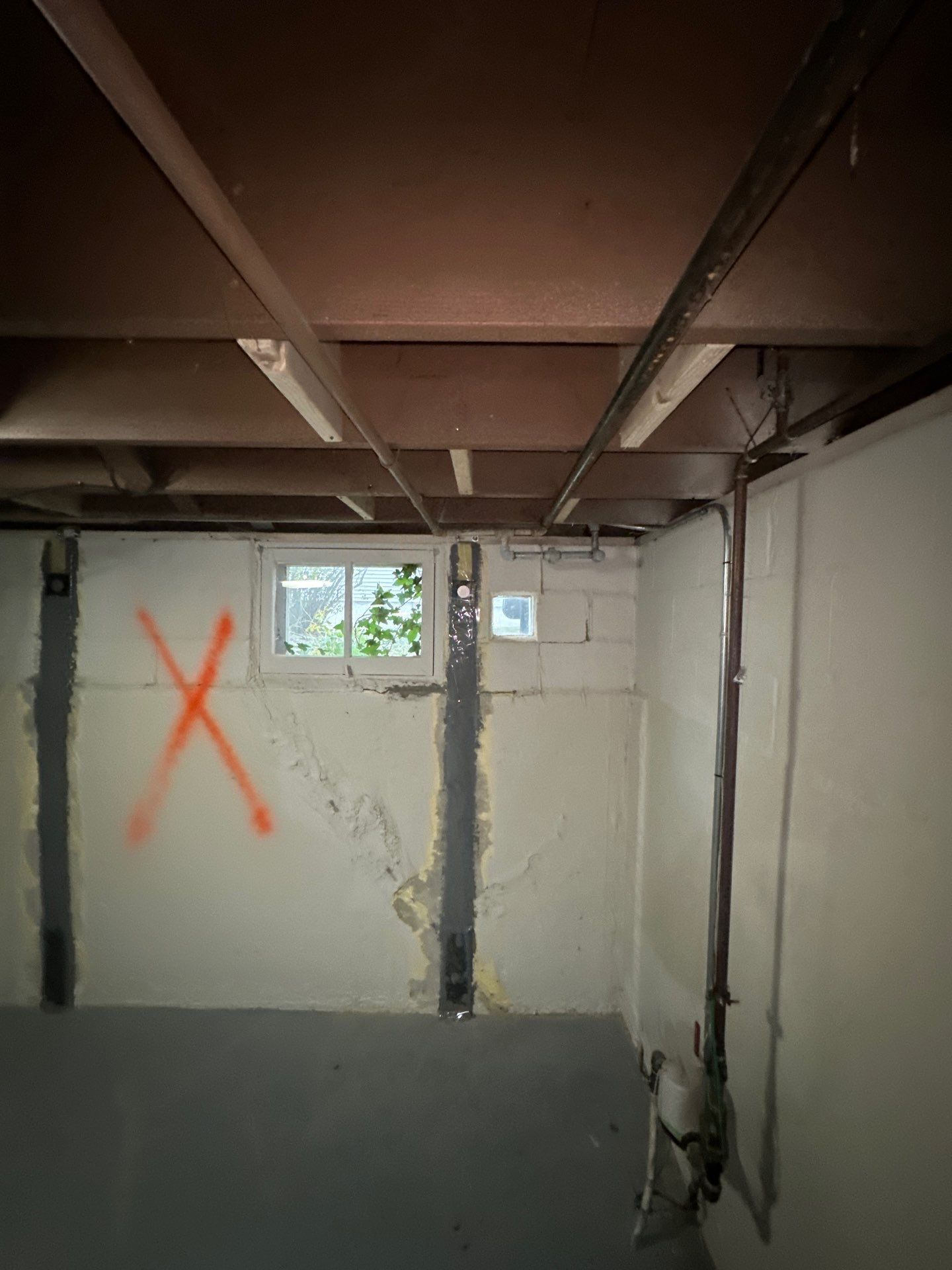

• 11 Fortress InvisiBeam® Carbon Fiber Straps:

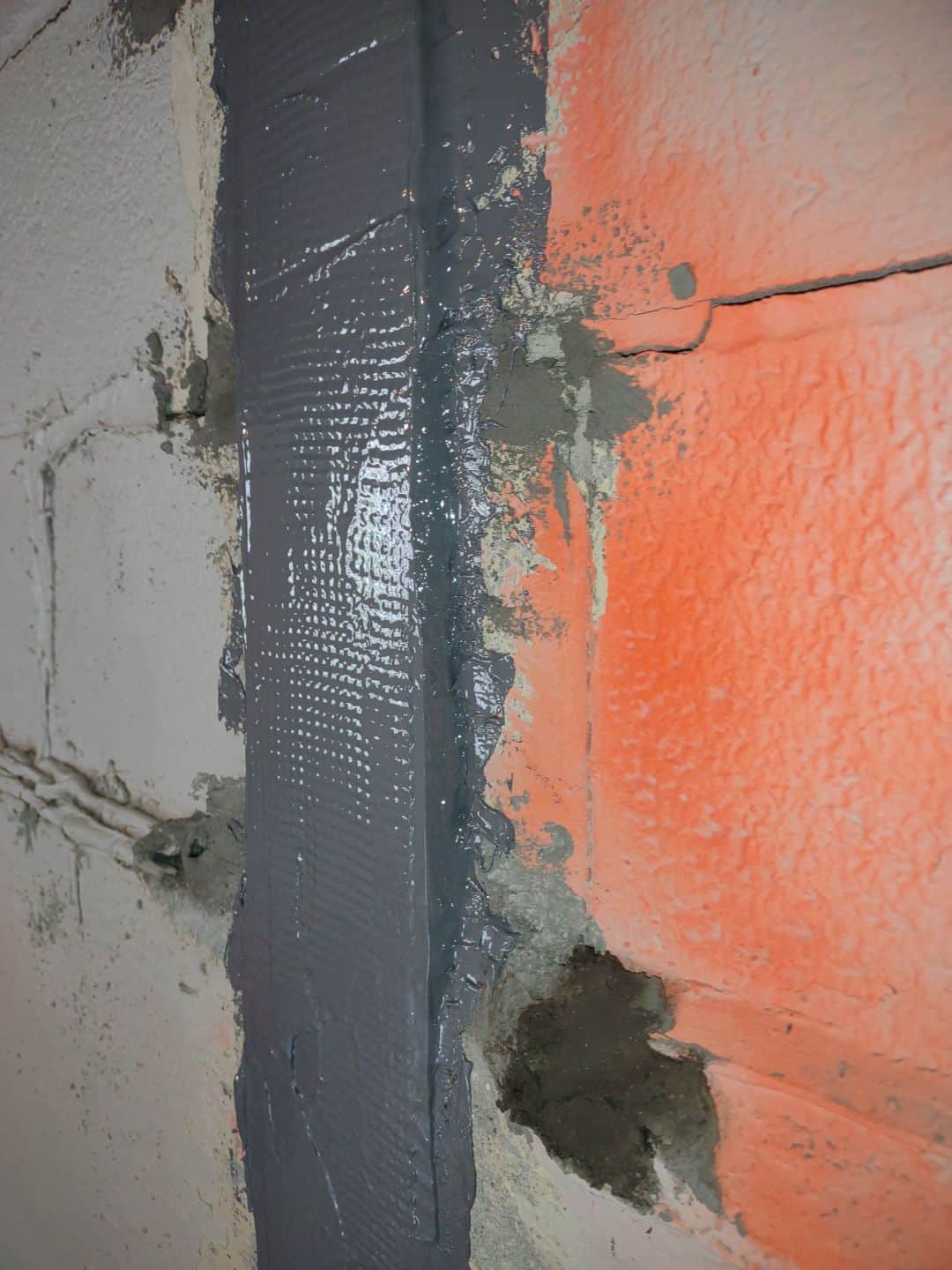

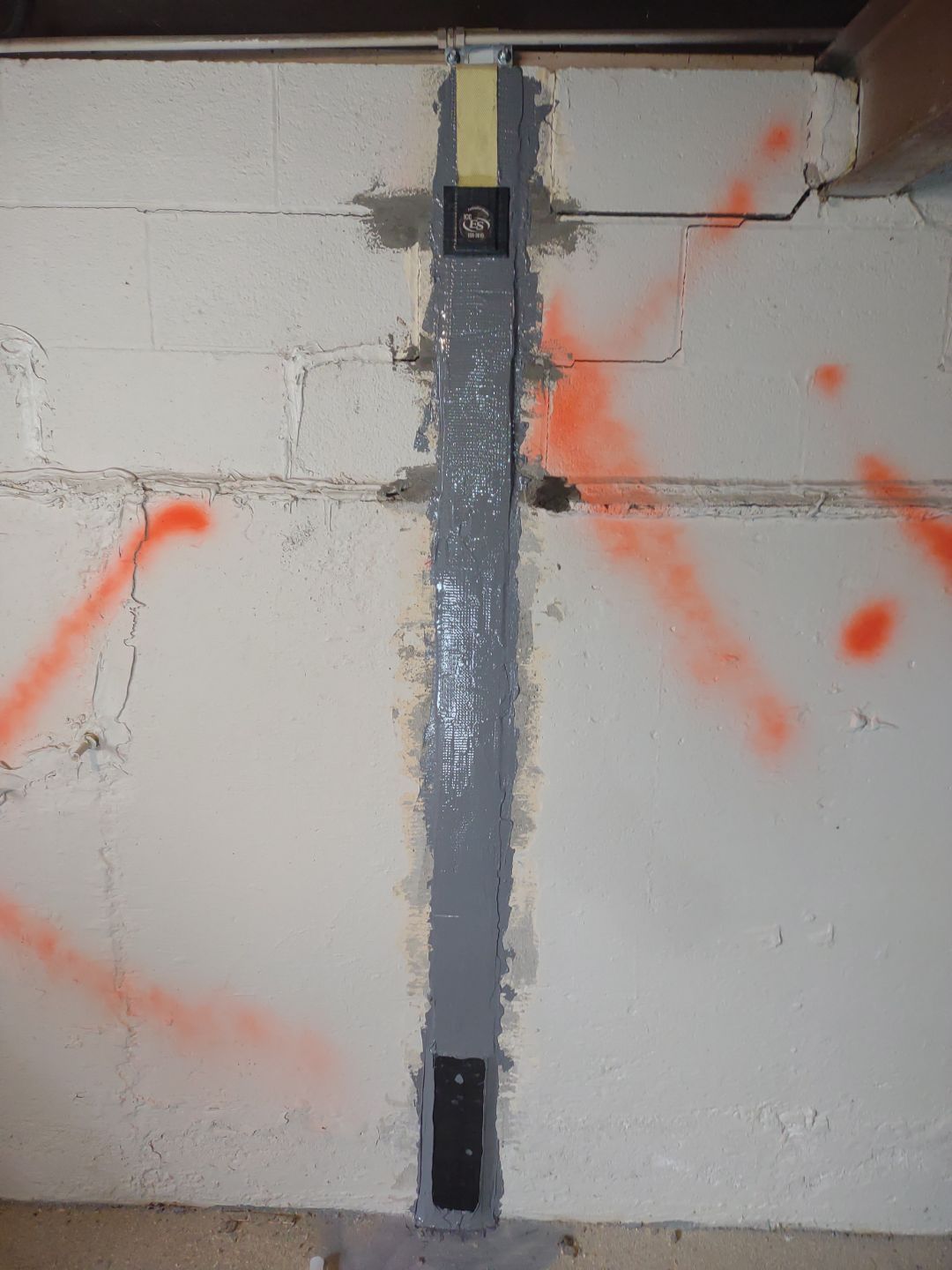

  Anchored top and bottom, these high-strength straps were installed across the wall to prevent further movement and restore support. InvisiBeam is ICC-certified and engineered to exceed building code requirements.

• Gap Fill Prior to Installation:
  Before installing the straps, the crew filled the small ledge created by the material transition to create a flat, continuous surface. This step ensured maximum adhesion and full surface bonding for each strap.

The Outcome

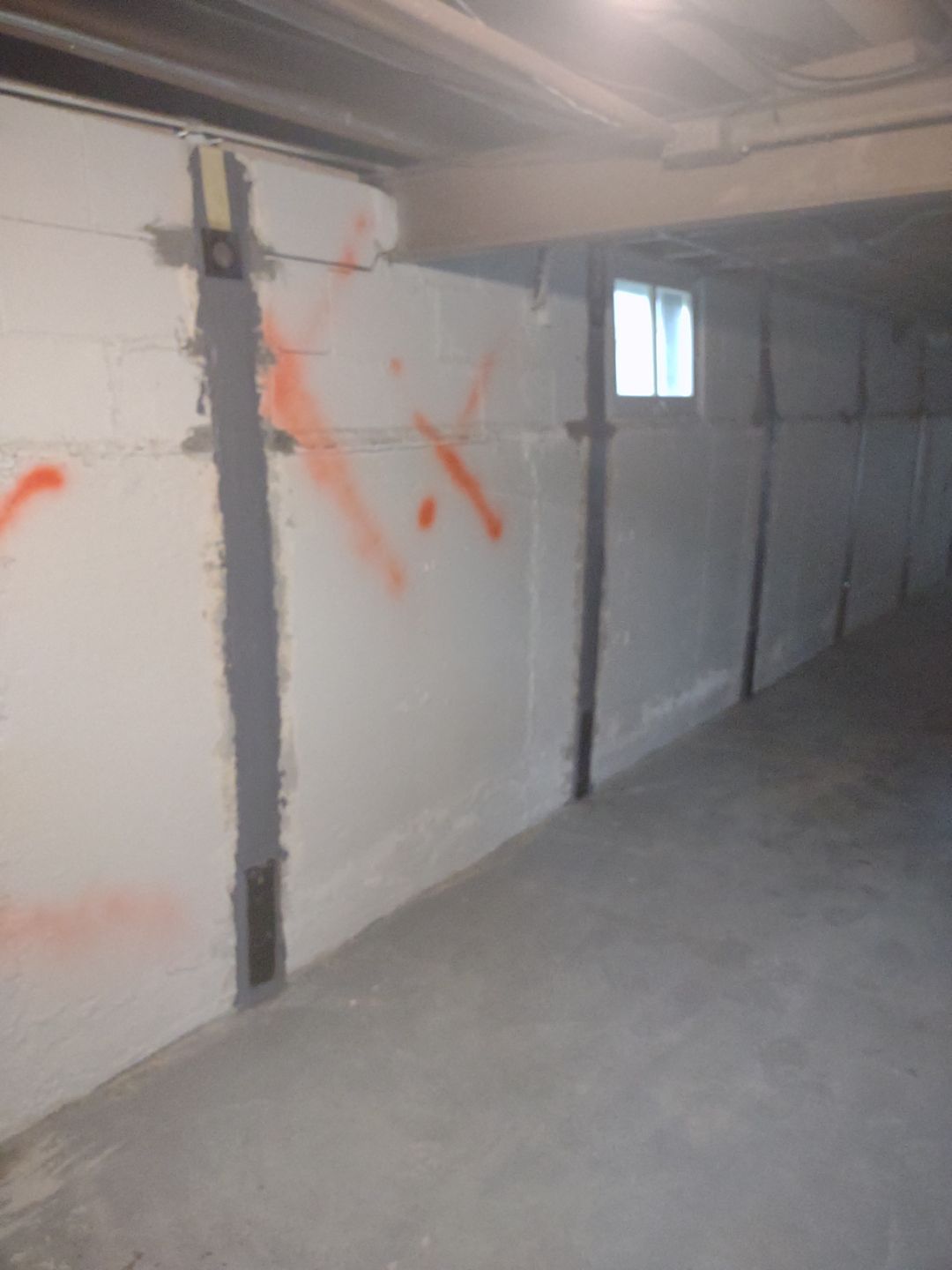

The wall is now fully reinforced from top to bottom, with carbon fiber strength bridging the vulnerable transition point between the poured and block wall. With this stabilization in place, the property gained not just safety—but long-term value and resale appeal.

Why It Matters

Investment properties depend on solid structure for strong returns. The InvisiBeam system provides a non-invasive, long-lasting solution that adds both function and value. In cases like this, it prevents minor structural concerns from turning into major liabilities.
